Highway Road Side Guard Rails and Wire Mesh Fencings for a highway project in Sri Lanka
We supply highway guard rails and mesh fencings for Highway Construction projects.
Below listed is guard rails and other metal materials related for highway project in Sri Lanka for customers references.
We can supply samilar products to world wide projects and welcome to contact us for further and specific information.
Project of Outer Circular Highway to the City: Guardrail (Road Side) - Right-of-Way Fence
Road
Guardrail
Guardrail (Road Side) - Gr - 4.0
Guardrail (Road Side) - Gr - 2.0
Emergency Median Opening (Chain Links)
Guardrails details:
Posts: Galvanized standard steel pipe
W beam rails, back up plates and terminal sections: Material standard: AASHTO M 180. Class A or B for
Galvanising standard: AASHTO M 180. Type 1. or 2
Corrosion resistance: AASHTO M 180, TYPE 4.
Materials for Nuts, bolts, studs: P ASTM A307
Fence
Right-of-Way Fence:
Galvanised wire mesh fencing
Panels and gates
Traffic Signs
Traffic Sign Board - Regular Size - Round 600mm
Traffic Sign Board - Regular Size - Square 600mm
Traffic Sign Board - Regular Size - Round 900mm
Traffic Sign Board - Regular Size - Square 900mm
Traffic Sign Board - Rectangular Variable Dimension
Road Markings
Road Markings with Reflectorized Thermoplastic Paint
Road Markings hot or cold applied for temporary marking
Roadside Markers
Kilometer Post (on Embankment)
Kilometer Post (on Bridge)
Culvert and Bridge Marker
Delineators
Delineator - Type 1-1 (Crystal)
Delineator - Type I-2 (Orange)
Delineator - Type 11-1 (Crystal)
Delineator - Type il-2 (Orange)
Delineator - Type III (Orange Double)
Delineator - Type IV (Orange Triple Vertical)
Delineator - Type V (Orange Triple Horizontal)
Delineator - Type VI-1 (Crystal, for Bridge)
Delineator - Type VI-2 (Orange, for Bridge)
Delineator - Type VI-3 (Orange Both Side for Bridge Median)
Delineator - Type VII (Orange Double, for Bridge)
Drawing Reference
Guard rail for roadside obstructions, culverts and for emergency uses:

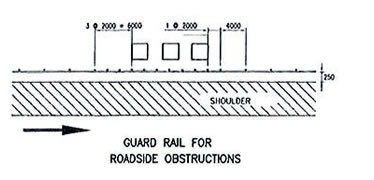

Guard rails for highway road side obstructions

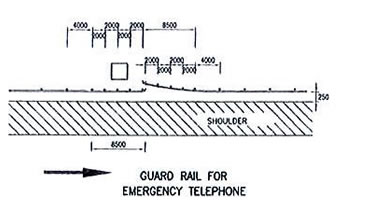

Guard rails for highway emergency telephone

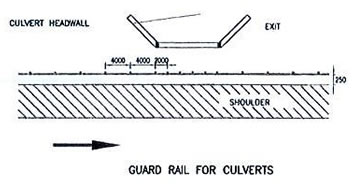

Guadrails for culverts in highway

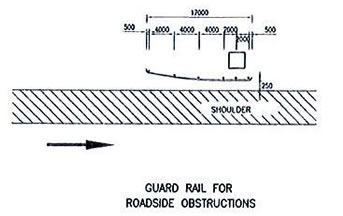

Guardrails for roadside obstructions
Guard Rail Details:

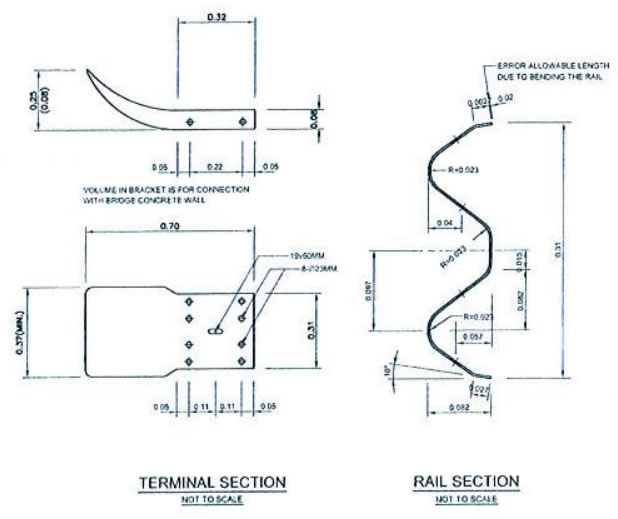

Highway Guard Rail section/ terminal section
Highway Guardrail System with median crossings for emergency situations handling:

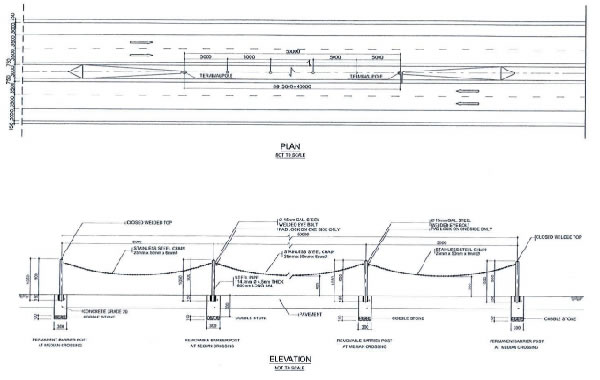

Highway Median opening design
Permanent barrier post, removable barrier posts and stainless steel chains 25mm x 50mm x 6 mm
