Hot-dipped Galvanized Guardrail Systems: Beams, Posts and Terminal Sections
Hot dipped galvanized guardrails are durable system that can provide long time protection to the highway vehicles. The complete system is usually composed with beams (w beam or thrie beams), galvanized posts and hot dipped terminal ends. The anti-collision safety grades are: A/B/SA/SB/SS.
Popular size SciSe exports:
Corrugated steel plate beams: Two-wave profile: 4320mm×310mm×85mm×3/4mm;
Three-wave profile: 4320mm×506mm×85mm×3/4mm
Matching posts for two-wave: 114/140mm×4.5mm
Upright posts for three-wave: 130mm×6mm, 140mm×4.5mm
Anti-collision grade: A/B/SA/SB/SS
Applied Standards for Manufacture and Quality Control: JT/T281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China), AASHTO M-180(Corrugated Sheet Steel Beams For Highway Guardrail - USA), RAL-RG620 (German) or any other International Standards.
Hot dipped galvanized steel guardrails are considered the effective safety barriers for highway, expressway and bridges. With thick zinc coating surface, the galvanized w beams or thrie beams offer excellent corrosion resistance and rust resistance property. The long service life it offers renders the cost for the high standard galvanizing.
Hot Dip Galvanized straight Guardrails with Steel End Rings:
Steel Guardrails straight, 3.8Mx2.6MM, finish: complete-hot Dip Galvanized, Heavy Zinc Plating Anti corrosion protection
Steel end wing: 3.8Mx2.6MM, finish: hot Dip Galvanized Anti corrosion protection

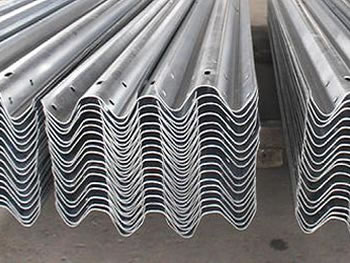

Guardrail, beams, posts, before installation:

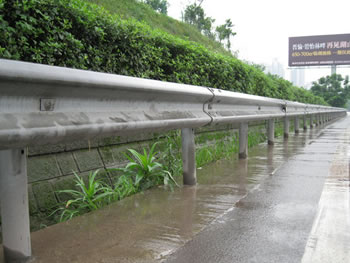

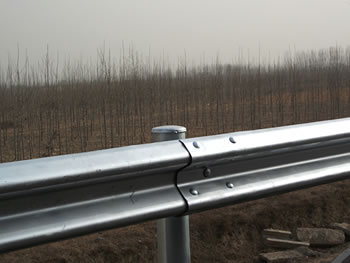

Guardrail barrier system installed, in practical project:
Base Steel: Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) or Q345 (S355JR / ASTM A529M 1994).
The thickness of the Steel: 3mm, 4mm, 6mm or according to consumers’ request.
Surface Treatment: Hot dip galvanized or Power coated.
The Thickness of Galvanizing (Double Sides): 550g/m2 (40µ) or 1100 g/m2 (80µ) or 1200 g/m2 (85µ) or as per your request.
Certificate: ISO9001, ISO14000, SGS, CE.
Features: Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.
Other special specification as per client's requirement or drawings.
System Advantages
- The barriers ensure minimum damage to the vehicle and its occupants.
- During collision, the beam absorbs maximum energy by flattening out laterally and restrains the vehicle from veering over.
- Prevents the vehicle from skidding back onto the carriageway by controlling exit angles through gradual deceleration and effective redirection of the vehicle back on to the road.
- Enables quick repairs in case of accidents.
- All components are galvanized for longer life.

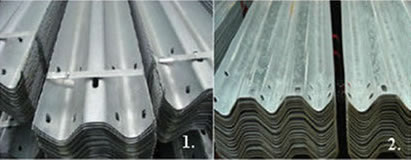

Beam Types Photo Illustration:
1.Two-wave Corrugated Steel Beams 2. Three-wave Corrugated Steel Beams
Ordering Information:
| Hot Dipped Zinc Plated Steel Beam Highway Guardrail | ||
| Basic Information | Material | high grade steel plate |
| Country of Origin | China | |
| Certificate | ISO,CE | |
| Supply Ability | 400,000MT per year | |
| Techniques | Surface Treatment | Hot-dipped galvanized |
| Zinc Coating | 60g/square meter-220g/square meter | |
| Product specifications | Raw material | Q235, Q345 |
| Thickness | 4mm or various international standards | |
| Thickness Tolerance | :+/-0.015mm | |
| Wave Width | 506mm | |
| Width Tolerance | +/-0.015mm | |
| Wave height | 85mm | |
| Length | 4320mm | |
| Theoretical Weight | 50 kg/pc | |
| PaymentTems | PaymentTems | 30% T/T as deposit in advance, and 70%T/T before loadingL/C |
| Package & Delivery | Minimum Order Quantity | 10 tons |
| Package | Standard sea worthy packing | |
| Delivery | 10-20 days after deposit or L/C arrive in our bank. | |
| Shipment | By bulk vessel | |
Road Traffic Control Projects:

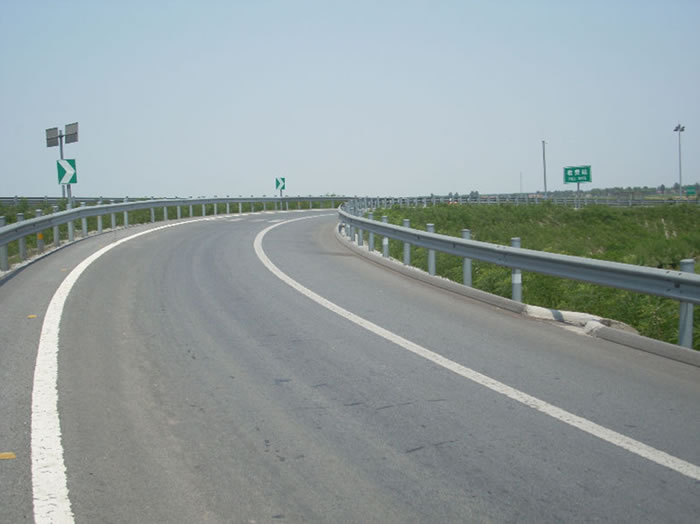

Galvanized Steel Highway Guardrails in Use

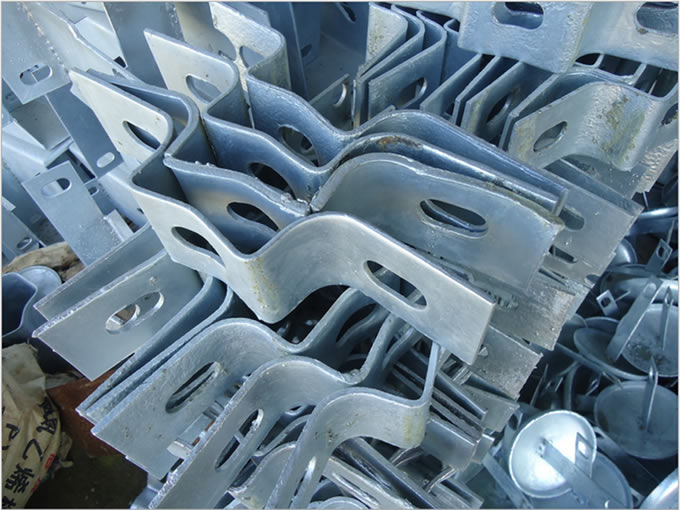

Fittings for the System:
SciSe offers hot dipped galvanized brackets, block spacers, posts and terminals to compose the whole highway barrier system. All surface treatment is hot dipped zinc plating. See photos below.
