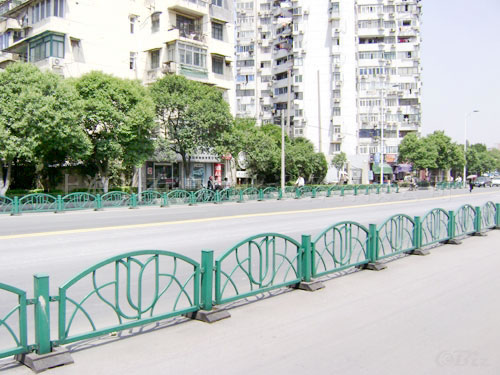

Mobile Traffic Fence
Mobile Fence System can be used on any surface for security and separation purposes. We supply mainly welded wire mesh panels and chain link type fence panels used as mobile or temporary fencing system.
These mobile fences are usually very light and easy to install. These two features enable an easy transportation from one place to another as temporary fencing for highway, railway and bridges.
Features:
1. It can quickly and easily be installed, without the need to disturb the surface area by digging
holes or laying foundations.
2. Different specifications are available according to customers' special inquiry or detailed drawings.
Mobile / Temporary Fencing Applications:
1.to secure construction sites and private property
2.of residential housing sites
3.for major public. events, sports, concerts, festivals, gatherings etc.
4.safety fencing for swimming pools
Hot Dipped Galvanized Temporary Fence

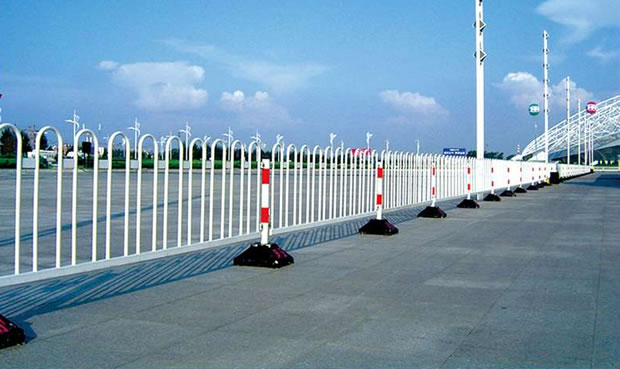

White Coated Tubular Mobile Fence
Green Coated Temporary Fence

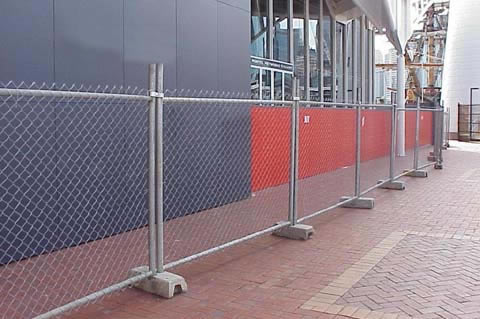

Chain Link Type Temporary Fences:
Chain link mesh for fencing, woven from steel wire, is probably the most widely used and versatile of all fencing fabrics, available in a variety of wire gauges and mesh sizes to suit specific applications
Feature
-
Temporary fencing systems can quickly and easily be installed, without the need to
disturb the surface area by digging holes or laying foundations.
-
Can be used in all kinds of landforms
Temporary fencing Specifications:
| Specification of Fences | Made of 2.5-5.0mm high quality low carbon steel wire |
| Opening (mm) | 50x100 / 50x150 / 50x200 / 55x100 / 55x200 / 65x100 / 65x200 / 75x150 /75x180 |
| Length (mm) | 1800 / 2000 / 2500 / 3000 |
| High (mm) | 600 / 800 / 1000 / 1200 / 1400 / 1600…2400 |
| Wire Dia(mm) | 3 /3.5 /4 /5 /6 |
| PVC coating thickness (mm) | 0.7-0.8 |
| Support post | 48x1.2 /48x1.5 /48x2/60x1.2/60x1.5 |
| Finishing of fence | Electro galvanized, hot-dipped galvanized, PVC coated, electro galvanized then PVC coated |
Feet and clamp:
| Frame and middle pipe | mesh size | wire diameter | Surface Treatment | Panel Width | Height |
| 25 x 1.2 / 1.5 mm 32 x 1.2 / 1.5 mm 42 x 1.2 / 1.5 mm 48 x 1.2 / 1.5 mm |
50x50 mm 60x60 mm 70x70 mm 75x75 mm 100x100 mm |
2.0mm 2.5mm 3.0mm 3.2mm 3.5mm 4.0mm |
Galvanized and pvc coated or hot ped galvanized | 2.00m 2.40m 2.50m 2.90m 3.65m |
1800 mm 2000 mm |
| 2100 mm | |||||
| 2400 mm |
Available Colors: Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
Mobile Fence System can be used on any surface for security and separation purposes. We supply mainly welded wire mesh panels and chain link type fence panels used as mobile or temporary fencing system.

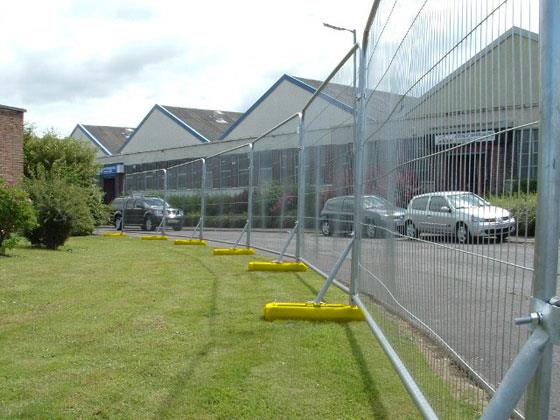

Welded Mesh Temporary Fence Barrier for Perimeter Security
A kind of portable knock-down barrier fence. Welded mesh infill railing panels with steel pipe frame, optional fencing gates. Portable barrier for site security and perimeter control. The weld mesh modular temp fence is also known as Canadian Temporary Fence.
Export Specifications FYR:
Height x Width：6ft x 9ft / 6ft x 9.5ft / 6ft x 9.6ft
Support Pipe Posts: 25, 32, 40, 42, 48mm
Wire diameter: 3-5mm
Weld Mesh: 75x75mm, 75x100mm, 60x150mm, 55x100mm, 50x50mm, 60x60mm, others.
Processing: Spot welding.
Material: Hot dipped galvanized steel wire, hot dipped galvanized steel tube
Finish: Powder coated (plastic, vinyl, enamel); galvanised; hot dip galv.
Color: Green, Red, Yellow, Blue, Grey, White, custom.
Projects

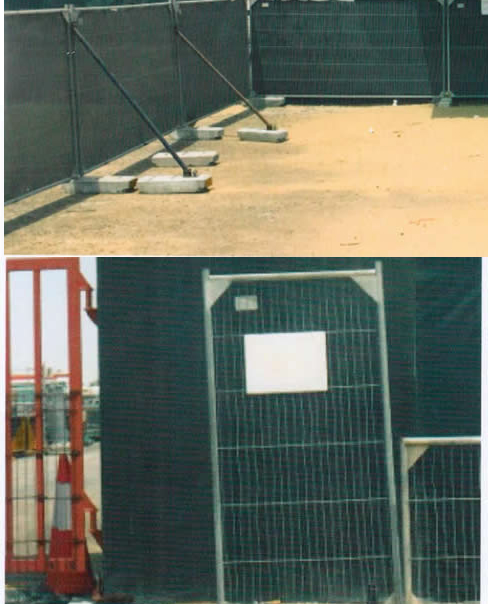

Welded Mesh Mobile Fencing for Dubai, UAE, with the below specs:
With top post, bottom post, support post with footing and wire infilling panels: a steadfast perimeter security fencing system

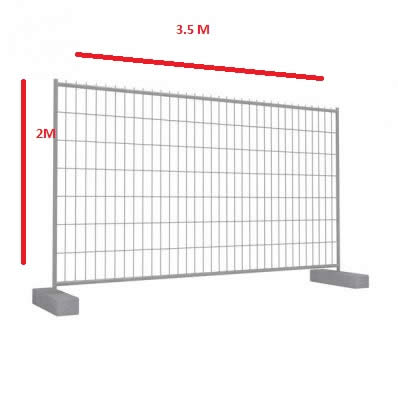

2m (H) x 3.5 m (W) – Temporary Control Barrier – 500 Nos. (Picture attached FYR)

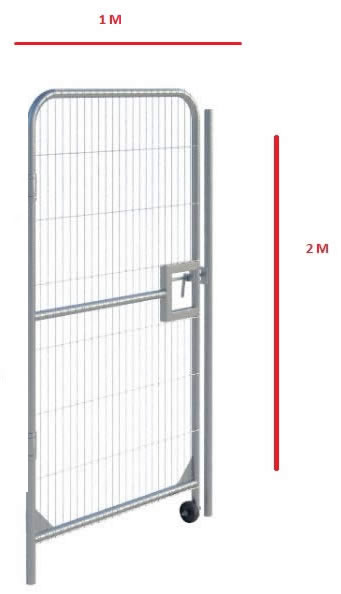

2m (H) x 1 m (W) – Temporary Barrier Gate - 50 Nos. (Picture attached FYR)
Galv. Steel Mesh Fencing for Security Uses: Galvanized steel pipe 1.5mm frame, with
Infill Welded Mesh 250 mm x 50 mm, galvanized wire 3mm; Panel size 2m x 3.5m.
