Road Safety Barrier Systems - Guard Rails, Bridge Guard Rails, Crashers
We supply road safety barrier systems on roads and bridges for New Zealand highway network constructions, as well as for road networks of other countries.
Road safety barrier system normally comprises a combination of the following components:• Roadside barrier
• Median Barriers
• Bridge Barriers
• Crash Cushions and End Terminals
• Barrier Transitions.
We supply GOVERNMENT APPROVED ROAD SAFETY BARRIER SYSTEMS for New Zealand Projects
Our safety rail materials meeting related standards set for New Zealand Road Safety Barrier Systems and meeting the testing conditions as specified.
Our guard rail safety barrier systems meeting NZTA M23: Appendix A for use on state highway roads.
We supply road safety barrier systems used on bridges conforming to the requirements of Transit New Zealand’s Bridge Manual.
Our guard rail barrier system is successfully crash tested and the results evaluated in accordance with the National Cooperative Highway Research Program Report 350: Recommended Procedures for the Safety Performance of Highway Features(NCHRP Report 350).
We can also supply alternative crash tests / certificates:
the testing undertaken by a reputable crash test organisation, and
the results certified as complying with an equivalent NCHRP Report 350 test level.
In addition, we also supply spare parts within set time frame in consideration for maintenance.
PERFORMANCE TESTS
The minimum performance level for road safety barrier systems installed on state highways is NCHRP Report 350 Test Level 3 (TL 3). The performance level of the road safety barrier systems approved for use on state highway roads is given in NZTA M23: Appendix A.
The minimum performance level required for road safety barriers on state highway bridges shall be determined by the method given in Appendix B, Section B3 of Transit New Zealand’s Bridge Manual.
DESIGN, LAYOUT, INSTALLATION AND MAINTENANCE OF ROAD SAFETY BARRIER SYSTEMS
Design
The design of all road safety barrier systems shall be compliant with the crash tested design or the barrier system configuration given approval under Section 3: Approval of Road Safety Barrier Systems.Changes to the crash tested/approved design/configuration will deem the barrier system noncompliant with this specification.
Layout
The layout of all road safety barrier systems should comply with the relevant guidelines:
(a) Roadside Safety Barriers
The layout of all roadside barriers shall be in accordance with the requirements of Section 7.3 of the SHGDM:Longitudinal Road Safety Barriers.
(b) Median Safety Barriers
The layout of all median barriers shall be in accordance with the requirements of Section 7.3.12 of the SHGDM:Median Barriers.
(c) Bridge Barriers
The layout of all bridge barriers, i.e. the barriers physically on the bridge deck, shall be in accordance with the requirements of the Bridge Manual.
Barriers on the approaches to bridges shall be in accordance with Section 7.3 of the SHGDM: Longitudinal Road Safety Barriers.
Installation
All road safety barrier systems must be installed in accordance with the manufacturer’s instructions.
Maintenance
All road safety barrier systems must be maintained in accordance with the manufacturer’s instructions and should be maintained at a level necessary to preserve its crash worthiness.
Following products/types of guardrail:
Road Safety Barrier Performance Tests: Test Level 3 and 4
Technical Reports, Selection and Barrier Types, Maintenance of Road Safety Barrier Systems
2.7mm Guardrail for Road Safety Barrier
Base material: 2.7mm Steel Plate Guard Rail
Corrosion protection:
Hot Dip Galvanize Finish
The standard for the guard rail: AS/NZS 3845: 1999 - Road Safety Barrier Systems.
Application: New Zealand market
Drawing for 2.7mm Guardrail
Bridge Guard Rail for Road Safety Barrier System
Base material: 3.4mm W beam Guard Rail
Corrosion protection:
Hot Dip Galvanize Finish
The standard for the guard rail: AS/NZS 3845: 1999 - Road Safety Barrier Systems.
Application: New Zealand highway project

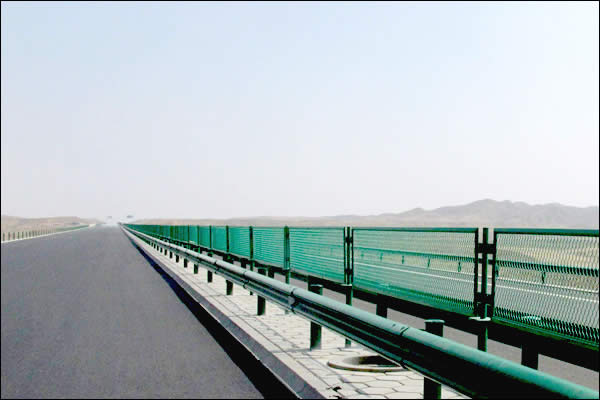

Road safety guard rail barrier with framed highway wire fences:
Road Safety Barrier Systems Supply for the World
We supply quality products meeting specific standard of Canada, USA, Sri Lanka and other countries transport authorities. Welcome to contact us with your specific market.
